Bag breaking machine

Overview

【Product Overview】:

The bag-breaking machine is a specialized piece of equipment used in waste treatment production lines to break open and disperse bagged waste. It is suitable for the initial processing of bagged materials such as municipal solid waste and mixed solid waste, helping to improve the efficiency of subsequent sorting, crushing, and screening processes.

【Production Capacity】:

20–300 t/h (adjustable according to material characteristics, bag material, and equipment model)

【Applicable Materials】:

Bagged municipal solid waste, bagged kitchen waste, bagged industrial solid waste, bagged construction waste, and other bagged solid waste requiring bag breaking before processing.

【Product Aliases】:

Waste bag-breaking machine, bagged waste tearing machine, bag opener, bag dispersing machine, bag breaking equipment

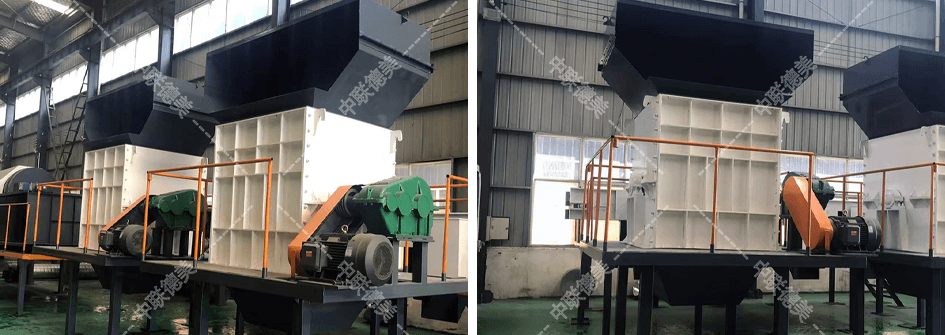

【Product Images】:

【Product Introduction】:

This equipment uses a rotating cutter shaft or hook tooth structure to effectively break open common packaging bags such as woven plastic bags and PE bags through mechanical tearing, allowing the contents to disperse for easier subsequent sorting and processing. The equipment boasts a robust structure and stable operation, and can be integrated with conveyors, screening machines, magnetic separators, and other equipment to form a continuous processing line.

【Working Principle】:

Materials are fed into the bag-breaking machine's inlet via a conveyor. A rotating cutter roller or hook-tooth device hooks, tears, and cuts the bag, causing it to break. The internal material scatters and is discharged under gravity and the machine's movement. The bag fragments are then carried to the next process or further sorted and recycled.

【Product Advantages】:

1. Compatible with various bag types: Handles common woven bags, plastic bags, composite bags, and other packaging formats.

2. Stable bag-breaking efficiency: A rational structural design ensures effective bag breaking during continuous operation.

3. Convenient maintenance: Modularly installed blades or hooks allow for individual replacement after wear.

4. Safe and reliable operation: Equipped with a protective cover and overload protection device, meeting safety production requirements.

5. Easy integration: Can be linked with front-end and back-end equipment for integrated control, suitable for automated waste processing lines.

6. Wear-resistant materials: Key contact parts are made of wear-resistant materials, extending the equipment's service life.

7. Low failure rate design: Optimized transmission system reduces jamming and abnormal shutdowns.

Technical Parameters
