Large-scale waste crushing equipment

Overview

This production line specializes in crushing and screening bulky household waste such as sofas, mattresses, tables, chairs, and cabinets. Through mechanical dismantling, coarse and fine crushing, magnetic separation, and air separation, it achieves the classified recycling of materials such as metal, wood, textiles, and sponge, improving resource utilization rates and contributing to the standardized collection and recycling system of bulky waste in cities. This aligns with national policies on solid waste management and green, low-carbon development.

【Production Capacity】:

Standard configuration processing capacity is 30–150 tons/day (can be customized and expanded according to regional collection volume and site conditions). It supports continuous operation and is suitable for urban bulky waste temporary storage points, resource recovery centers, or sanitation complex projects.

【Product Introduction】:

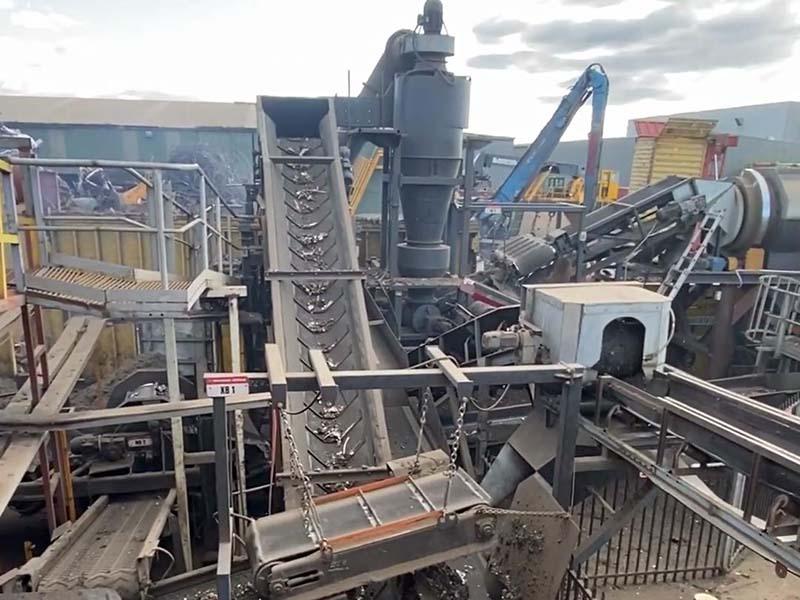

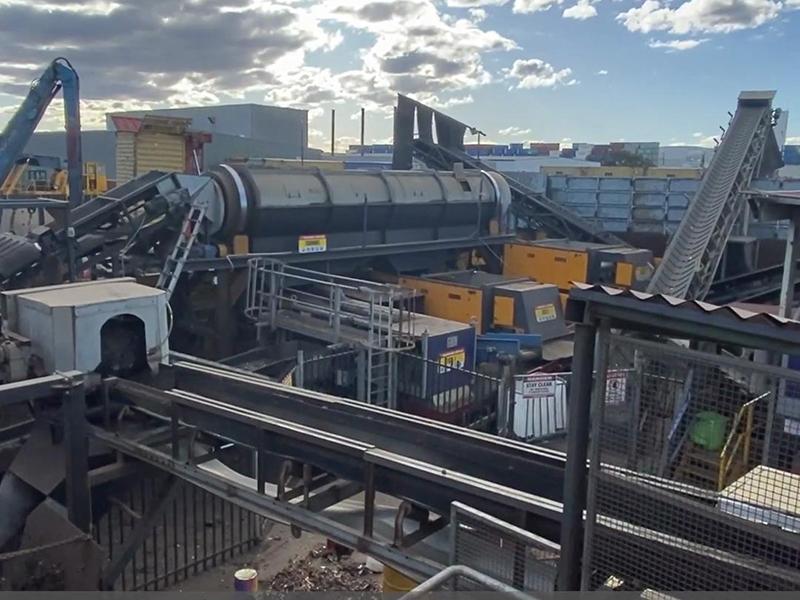

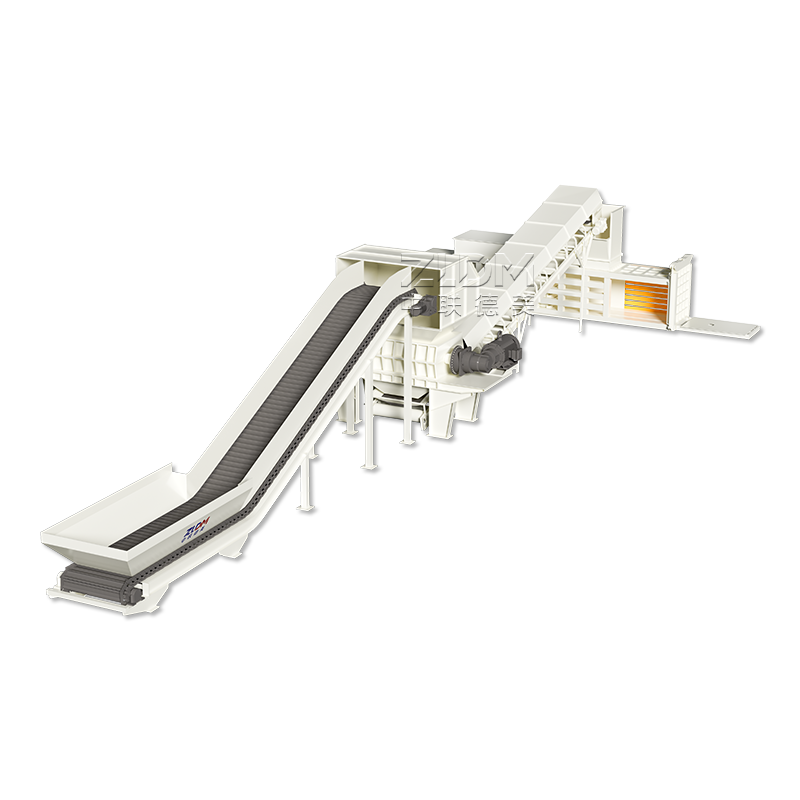

The production line consists of a chain conveyor, heavy-duty shredder, secondary fine crusher, magnetic separator, air separation system, vibrating screen, dust removal and noise reduction equipment, and intelligent control system. The main unit uses high-strength alloy blades and a wear-resistant structural design, efficiently crushing mixtures of wood, metal frames, and soft fillers. The entire line has a compact layout, stable operation, and is easy to maintain and clean.

【Working Principle】:

Large-sized waste is pre-disassembled manually or mechanically and then conveyed to a heavy-duty shredder for coarse crushing. The crushed material then enters a secondary fine crusher for further volume reduction. Subsequently, a magnetic separator separates ferrous metals, an air separation system separates lightweight materials (such as fabrics and foam), and a vibrating screen classifies the remaining components according to particle size. The entire process is equipped with negative pressure dust removal and sound insulation devices, and PLC centralized control enables automated operation and safety monitoring.

【Key Advantages】:

1.Specifically designed for the characteristics of large-sized waste, with strong crushing capacity and adaptability to various composite materials;

2.Clear sorting paths and well-defined recyclable material categories facilitate integration with downstream recycling channels;

3.Integrated environmental protection modules effectively control dust and noise, meeting urban operating environment requirements;

4.High degree of automation reduces manual dismantling workload, improving processing efficiency and operational safety;

5.Supports modular combination and personalized customization, providing full-cycle services from process planning to operation and maintenance support.

Technical Parameters
