Rotten Garbage Resource Utilization System

Overview

This production line is specifically designed for the resource recovery of aged landfill waste. Through mechanical screening, component separation, and impurity removal, it effectively classifies humus, combustibles, metals, and inert aggregates, contributing to the reduction, harmless treatment, and resource reuse of existing waste, aligning with national policies on "zero-waste cities" and the management of existing solid waste.

【Production Capacity】:

The standard configuration has a daily processing capacity of 100–500 tons (can be flexibly customized according to the scale of on-site waste and project timelines), supporting continuous and stable operation, and suitable for various integrated treatment projects of aged landfill waste.

【Product Introduction】:

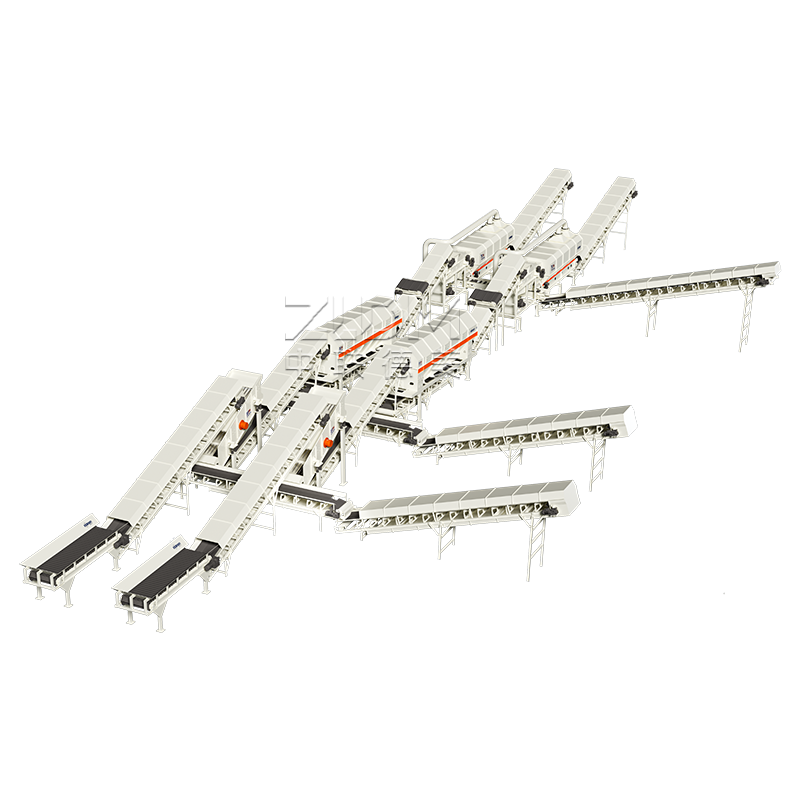

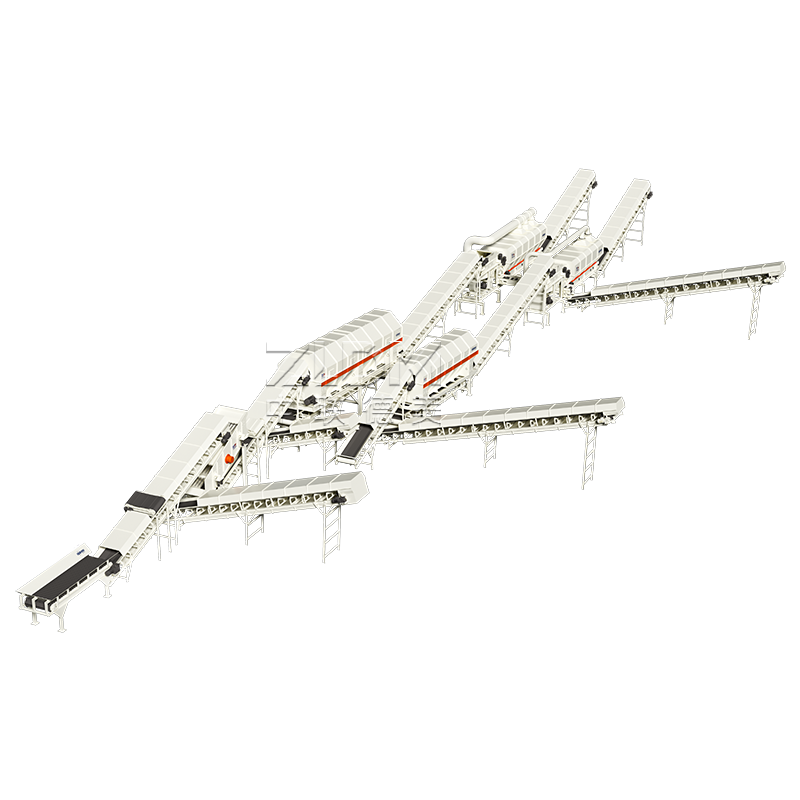

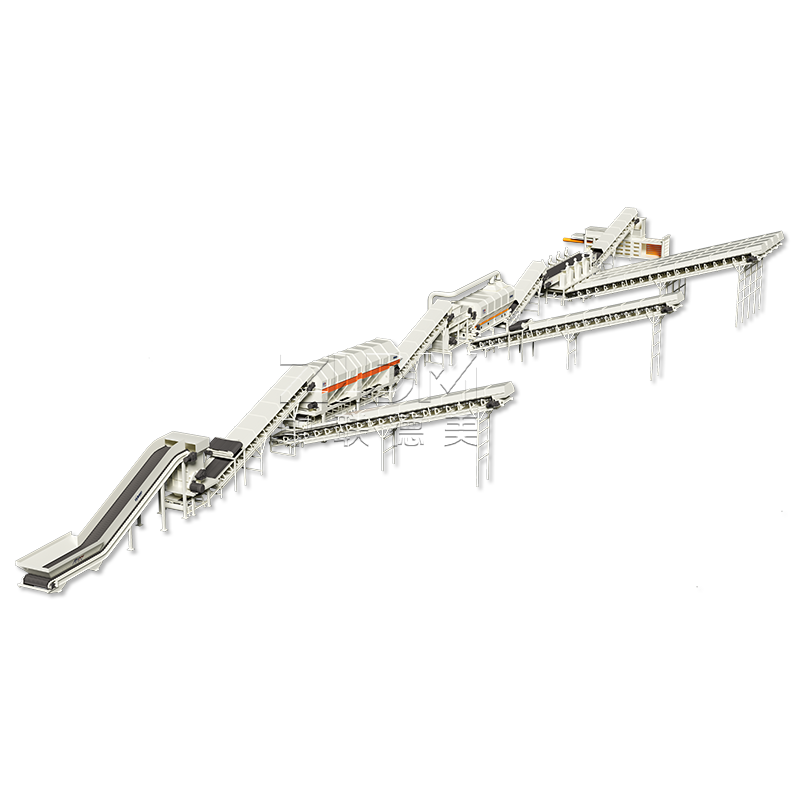

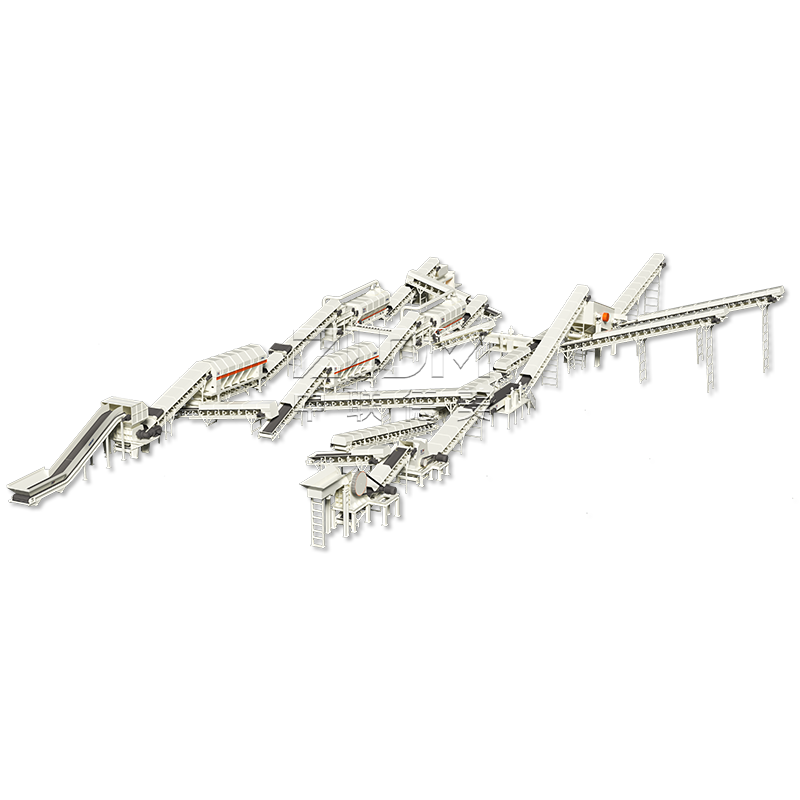

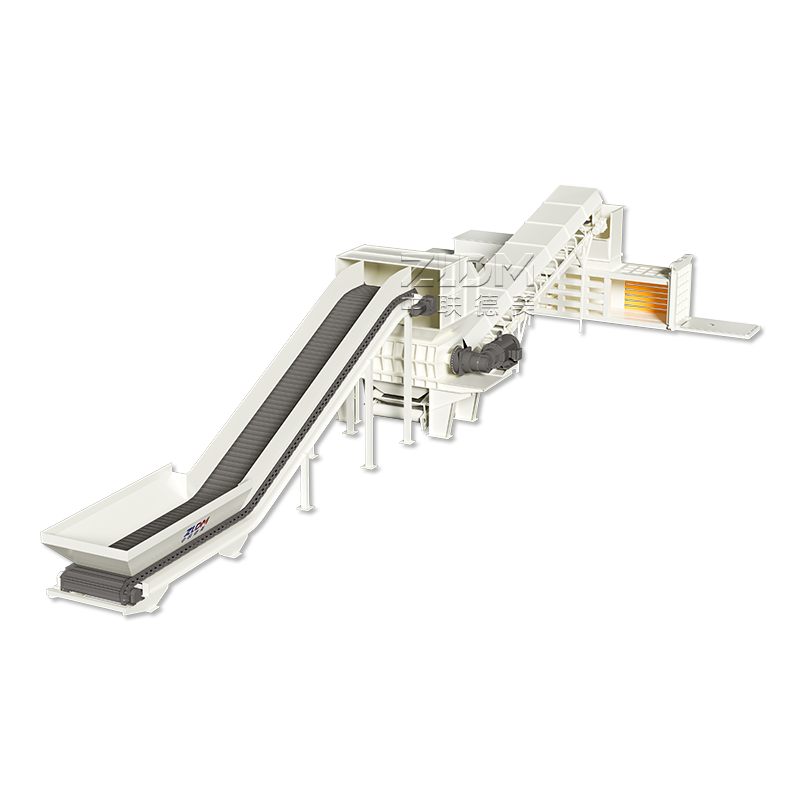

The production line integrates a chain feeder, drum screen/vibrating screen, air separation system, magnetic separator, manual sorting platform, conveying system, and intelligent control unit. Core components are made of corrosion-resistant and wear-resistant materials, adapting to high humidity and highly corrosive material environments. It can efficiently separate components such as plastic film, textiles, wood, bamboo, ironware, stones, and organic humus, facilitating subsequent resource recovery or safe landfill disposal.

【Working Principle】:

After being evenly distributed, aged waste first enters the primary screening equipment to remove large debris; then it enters the main screening system for particle size classification; lightweight combustibles are extracted by a negative pressure air separation system; a magnetic separator automatically recovers ferrous metals; humus and aggregates are transported to designated areas separately. The entire process is equipped with a dust removal and deodorization auxiliary system to ensure a clean and controllable working environment, and PLC centralized monitoring ensures stable operation.

【Key Advantages】:

1. Optimized design for aged waste with high moisture content and high adhesion, resulting in stable screening efficiency;

2. Modular combined structure, facilitating transportation, installation, and site adaptation;

3. Clear sorting path, ensuring the purity of resource-recovered products meets the basic requirements for downstream reuse;

4. The system is equipped with environmental protection auxiliary devices, complying with on-site environmental management regulations;

5. Provides full-process service support from process design and equipment supply to commissioning and operation.

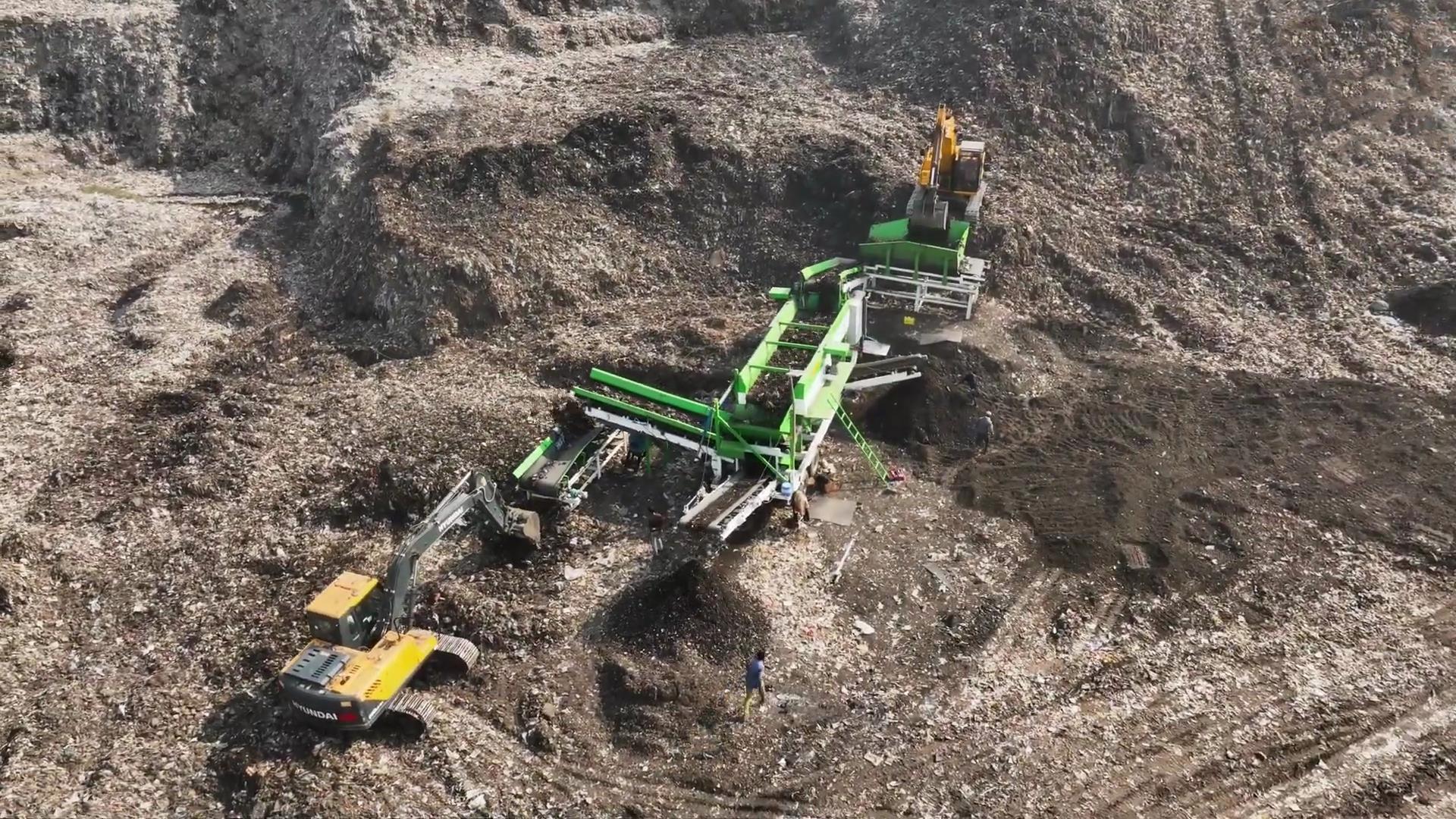

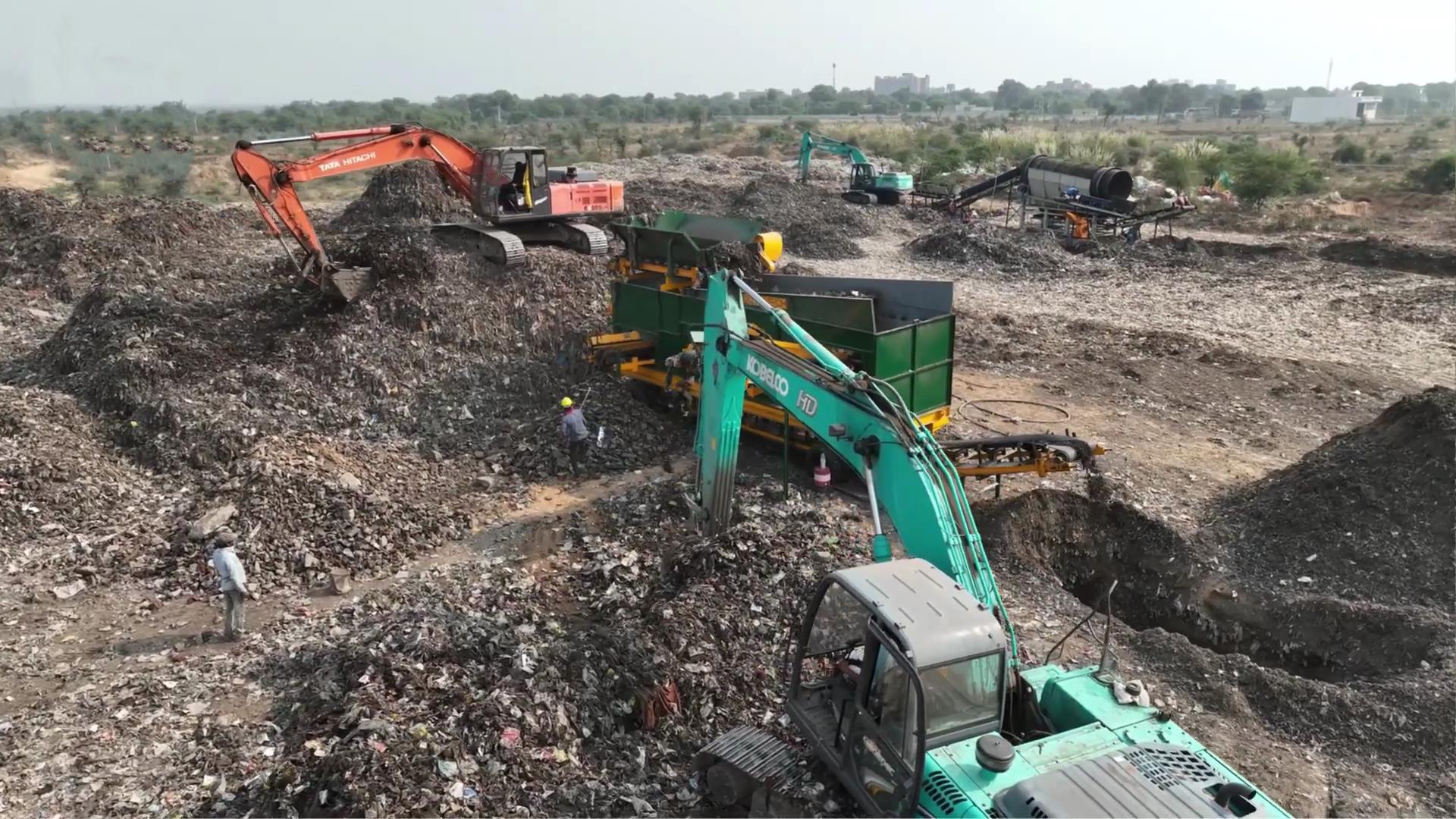

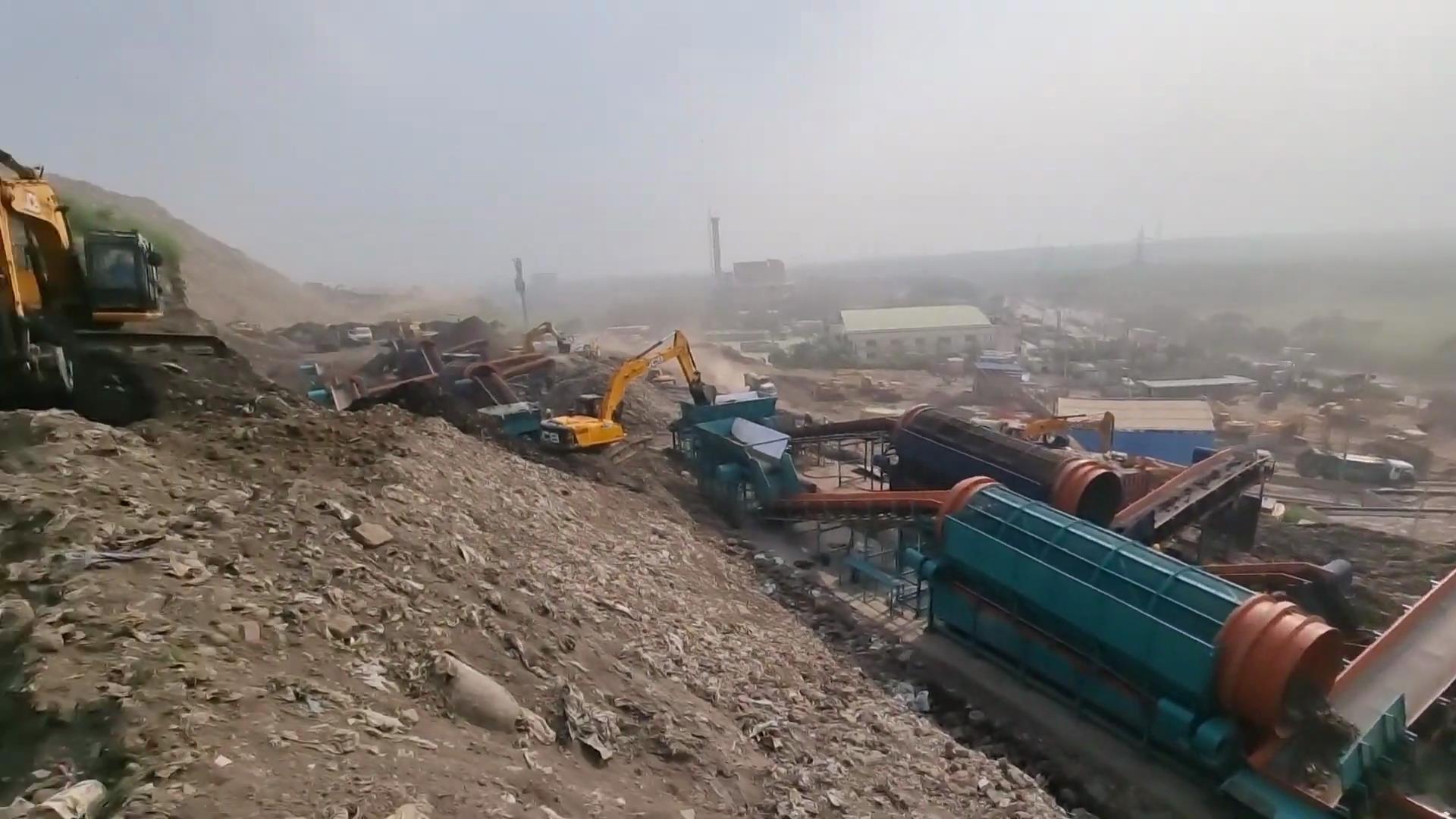

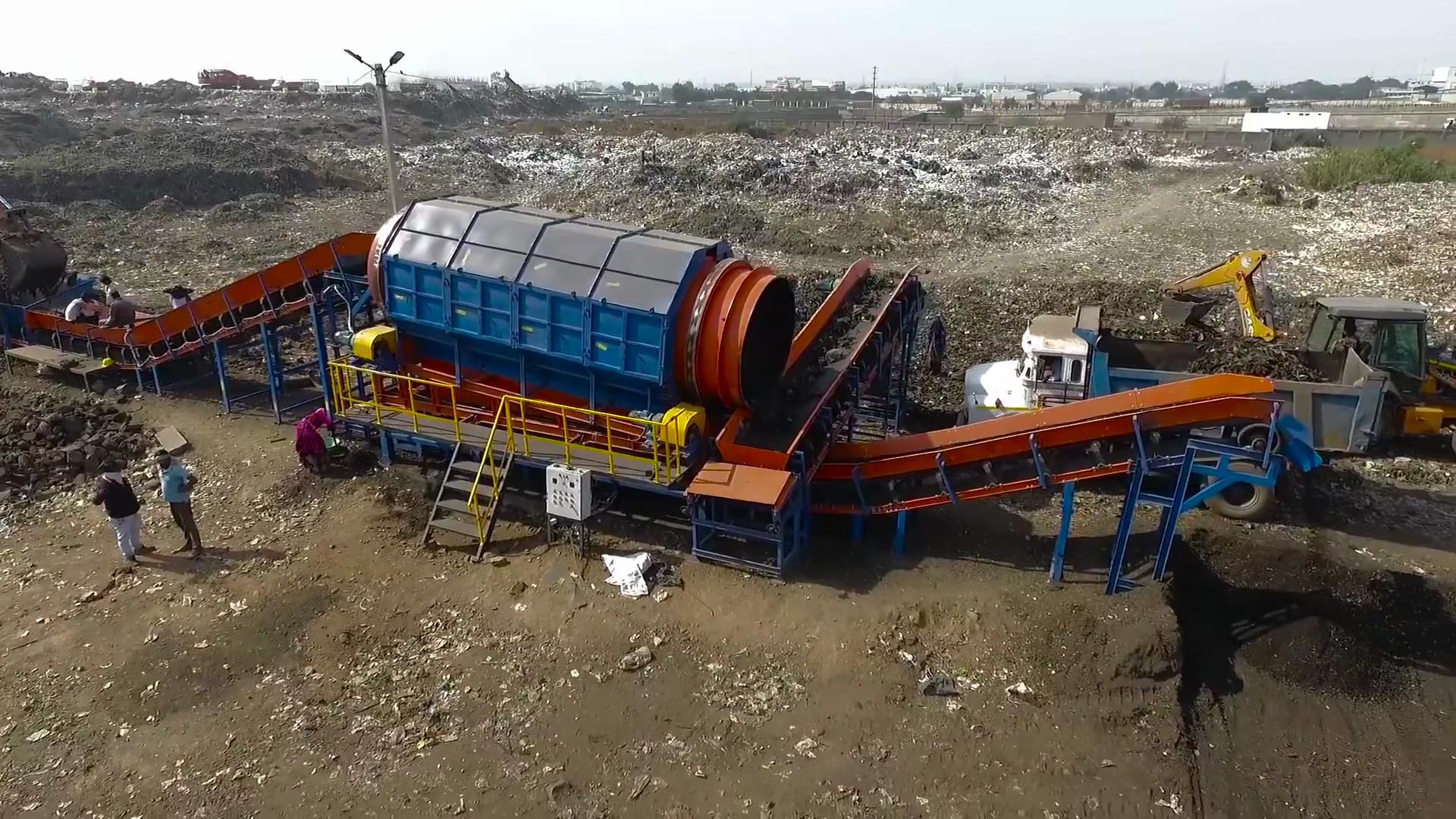

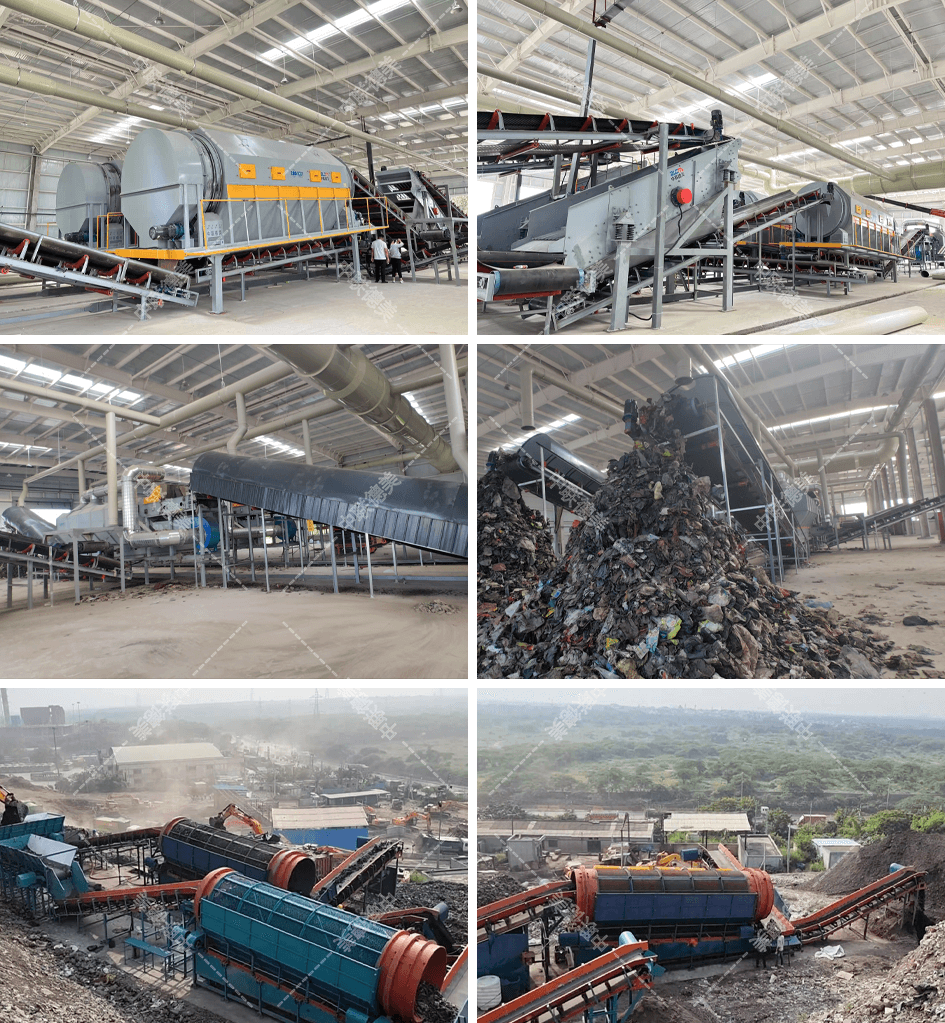

【Usage Site】:
