Jaw Crusher

Overview

【Product Overview】:

Jaw crushers are equipment used in waste treatment and solid waste resource recovery production lines for the coarse crushing of large materials. They are suitable for the primary crushing of hard materials such as construction waste, concrete blocks, bricks, and slag. With a simple structure and reliable operation, they are commonly used at the front end of crushing systems.

【Production Capacity】:

20–800 t/h (adjustable according to feed opening size, discharge opening adjustment range, material hardness, and operating parameters)

【Applicable Materials】:

Primary crushing of medium to high hardness brittle solid materials such as construction waste, large concrete blocks, bricks, slag, recycled aggregate raw materials, and mine waste rock.

【Product Aliases】:

Jaw crusher, tiger jaw crusher, coarse jaw crusher, waste jaw crusher, primary crusher

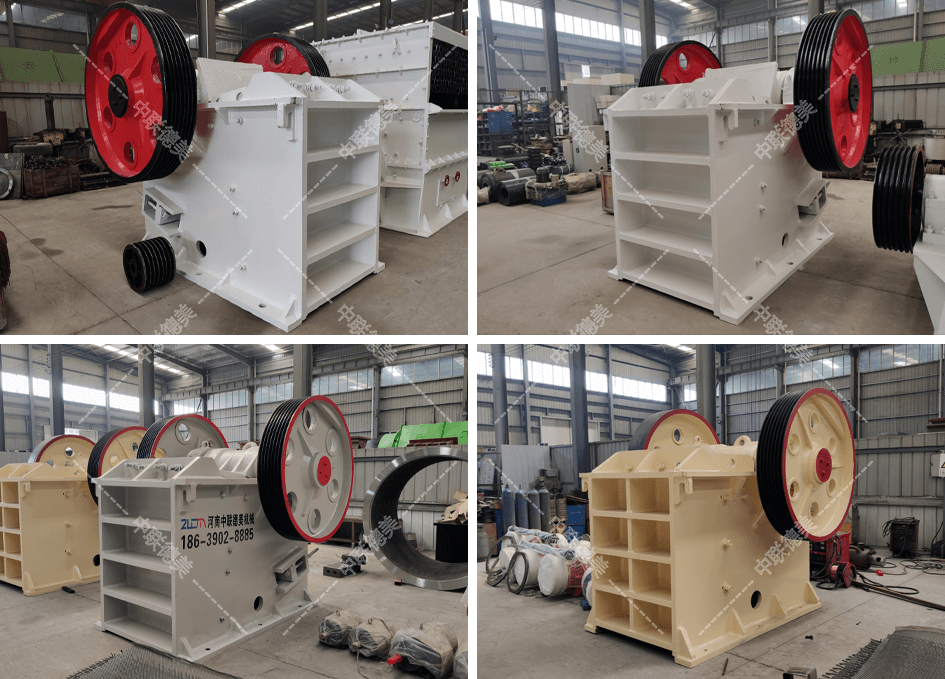

【Product Images】：

【Product Introduction】:

This equipment uses a crushing chamber composed of a moving jaw and a fixed jaw. A crank-connecting rod mechanism drives the moving jaw to periodically press against the fixed jaw, achieving compression crushing of the material. The discharge opening width is adjustable to accommodate different discharge particle size requirements. The equipment features a robust frame, suitable for heavy-duty operations, and is often used as the first stage in a crushing system, in conjunction with a vibrating feeder, magnetic separator, and belt conveyor.

【Working Principle】:

The motor drives the belt and pulley, which in turn rotates the eccentric shaft, causing the moving jaw plate to periodically move closer to or away from the fixed jaw plate. Material enters the crushing chamber through the upper feed inlet and is crushed by compression, splitting, and bending between the moving and fixed jaws. The crushed material exits through the lower discharge outlet, with the particle size controlled by the width of the discharge outlet.

【Product Advantages】:

1. Wide Applicability: Can handle medium to high hardness large materials, meeting the basic needs of coarse crushing.

2. Mature Structural Design: Stable mechanical transmission, low failure rate, suitable for long-term continuous operation.

3. Flexible Discharge Adjustment: Discharge opening can be adjusted via shims or hydraulic means to adapt to different process particle size requirements.

4. Good Wear Resistance: Jaw plates are made of high manganese steel or alloy materials, can be reversed for use, extending replacement cycles.

5. Comprehensive Safety Considerations: Equipped with overload protection devices to reduce equipment damage caused by abnormal material jamming.

6. Relatively Convenient Maintenance: Reasonable structural layout, key component replacement is relatively convenient.

7. Easy System Integration: Can be linked with feeding, screening, and iron removal equipment to form a complete crushing production line.

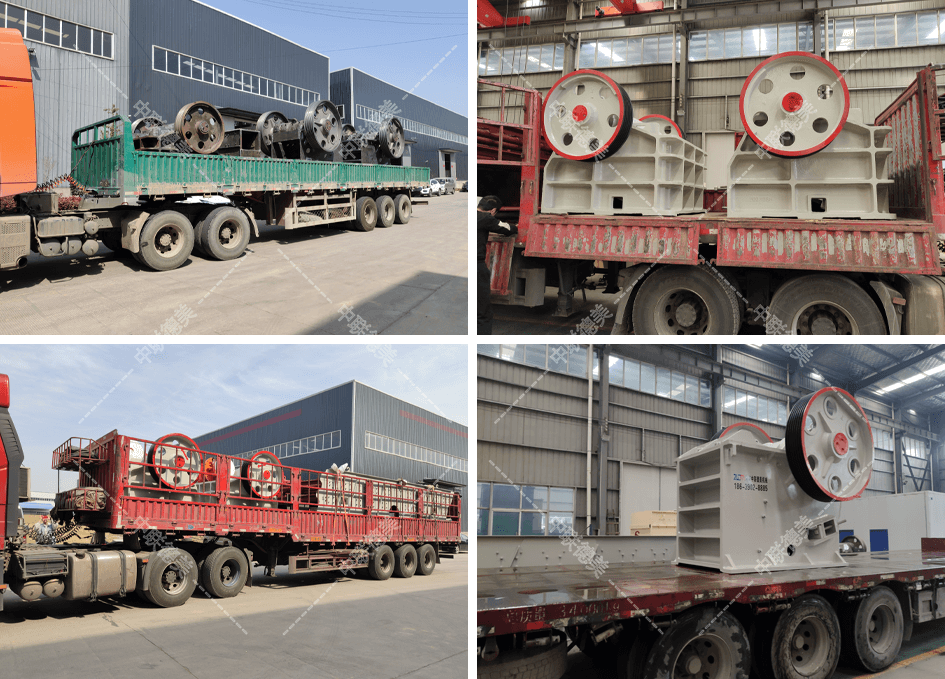

【Shipping Photos】:
