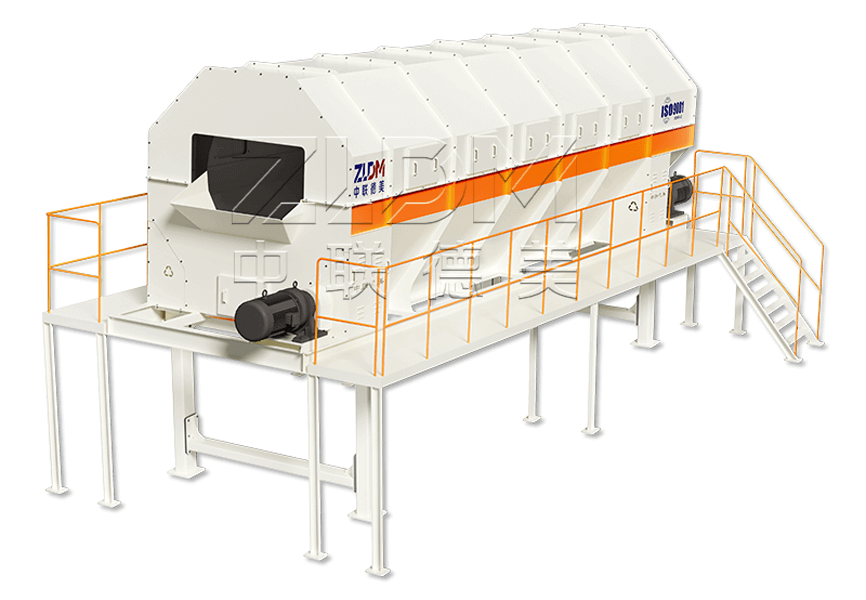

Trommel screen

Overview

【Product Overview】:

A rotary drum screen is a screening device that uses a rotating screen cylinder to classify materials. It is suitable for separating mixed materials by particle size in waste treatment production lines. It is commonly used for coarse, medium, and fine classification of municipal solid waste, construction waste, and compost materials, helping to improve the efficiency of subsequent resource recovery.

【Production Capacity】:

20–500 t/h (adjustable according to cylinder size, rotation speed, material characteristics, and screen aperture configuration)

【Applicable Materials】:

Loose solid materials requiring particle size classification, such as municipal solid waste, construction waste, aged waste, pre-composted materials, industrial solid waste, and sand and gravel mixtures.

【Alternative Names】:

Cylindrical screen, rotary screen, drum screen, waste drum screen, grading screen

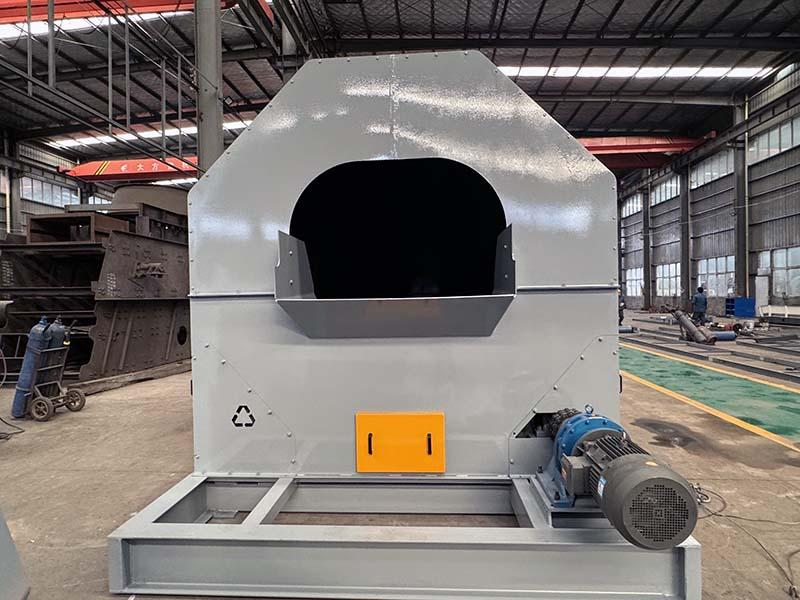

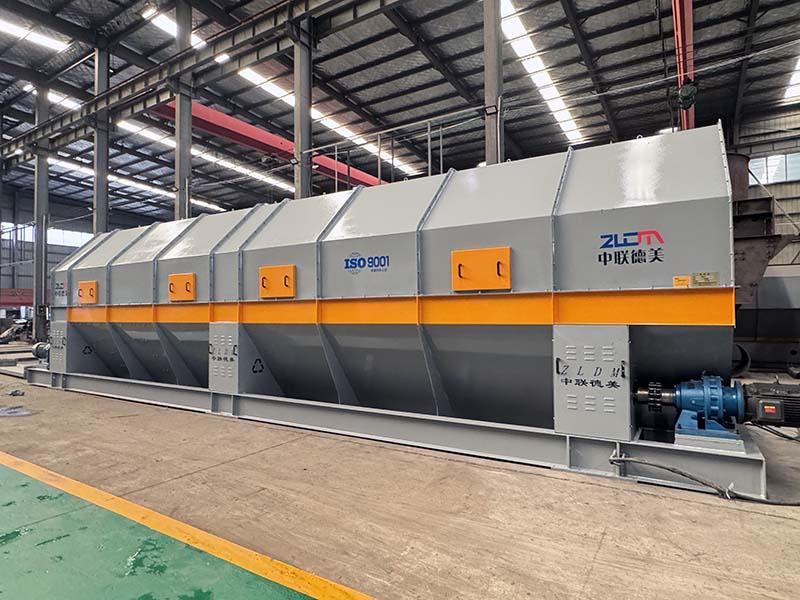

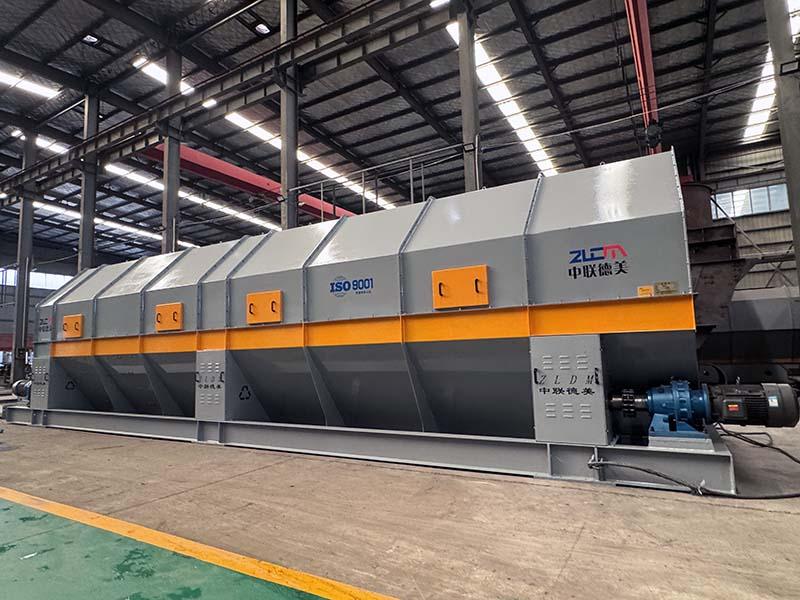

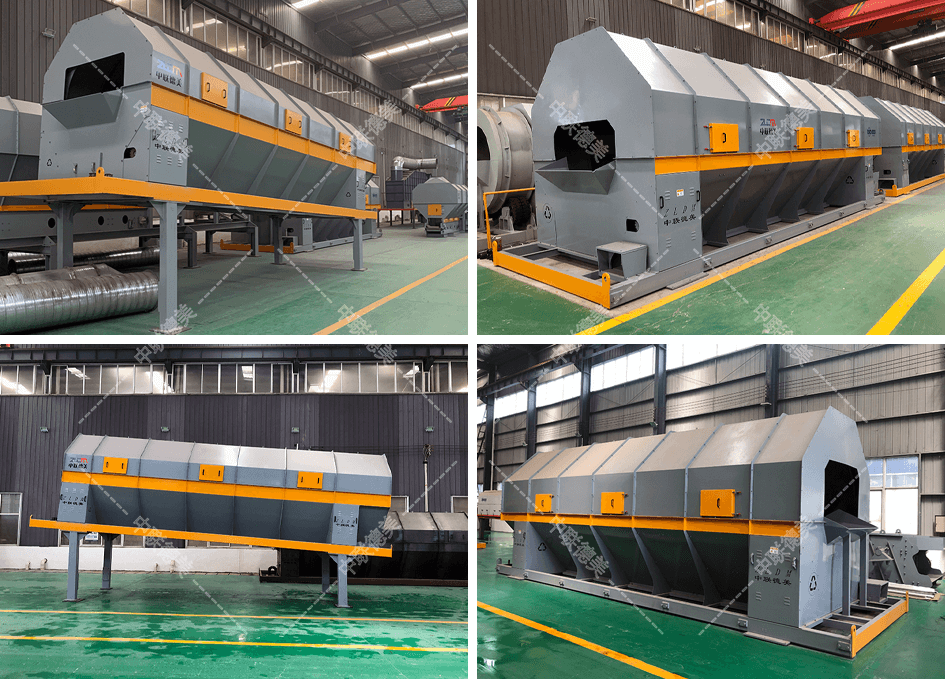

【Product Images】:

【Product Introduction】:

This equipment adopts an inclined rotating screen cylinder structure. The cylinder body consists of multiple sections of screens with different aperture sizes, enabling simultaneous multi-stage screening. The screen material can be selected from wear-resistant steel, perforated plate, or woven mesh according to the material characteristics, adapting to wet, sticky, or impurity-containing materials. The equipment operates smoothly, has high screening efficiency, and can be linked with conveyors, crushers, magnetic separators, and other equipment to form a screening system.

【Working Principle】:

Materials enter the rotating screen cylinder through the feed inlet and tumble forward under the action of gravity and the cylinder's rotation. Materials smaller than the screen openings pass through the corresponding aperture screens and fall down, while larger particles are discharged from the end of the screen cylinder, thus achieving particle size classification. The undersize and oversize materials can then enter different processing flows.

【Product Advantages】:

1. Stable Grading Capacity: Configurable with multi-segment screens, achieving simultaneous separation of 2-4 particle sizes;

2. Adaptable to Sticky and Wet Materials: Rotary tumbling action helps reduce screen clogging, suitable for wet waste;

3. Rational Structural Design: Optimized cylinder support and transmission system ensures smooth operation and minimal vibration;

4. Convenient Screen Replacement: Modular screen plate design allows for individual replacement after localized wear;

5. Flexible Layout: Adjustable tilt angle and speed adapt to different material flowability and screening accuracy requirements;

6. Easy Integration into Automation: Can be equipped with frequency converter speed regulation and linkage control, suitable for intelligent sorting production lines;

7. Low Maintenance Costs: No complex vibration structure, making daily maintenance relatively simple.

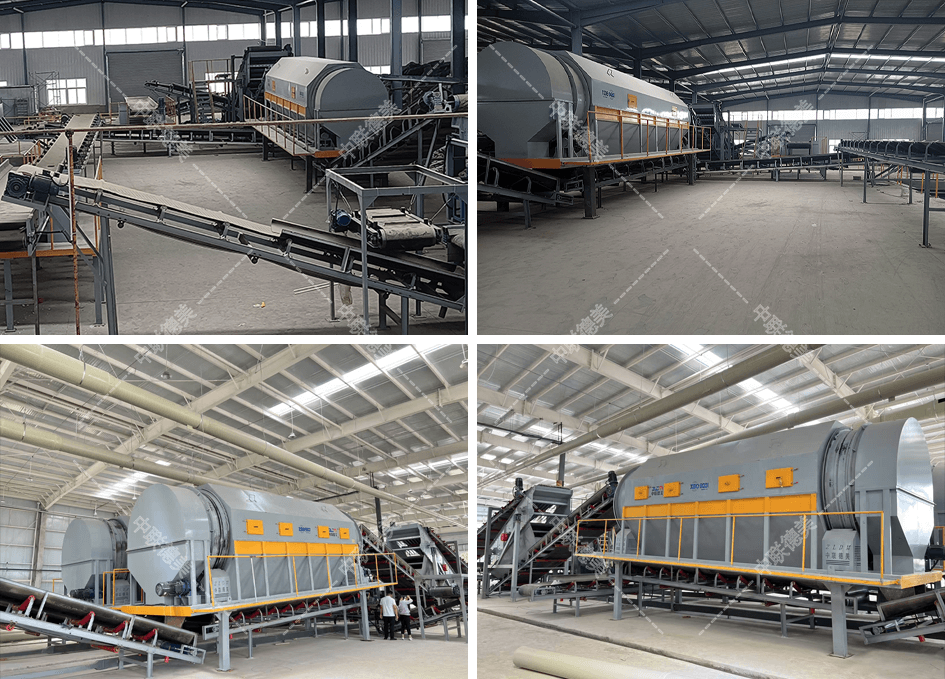

【Usage Site】:

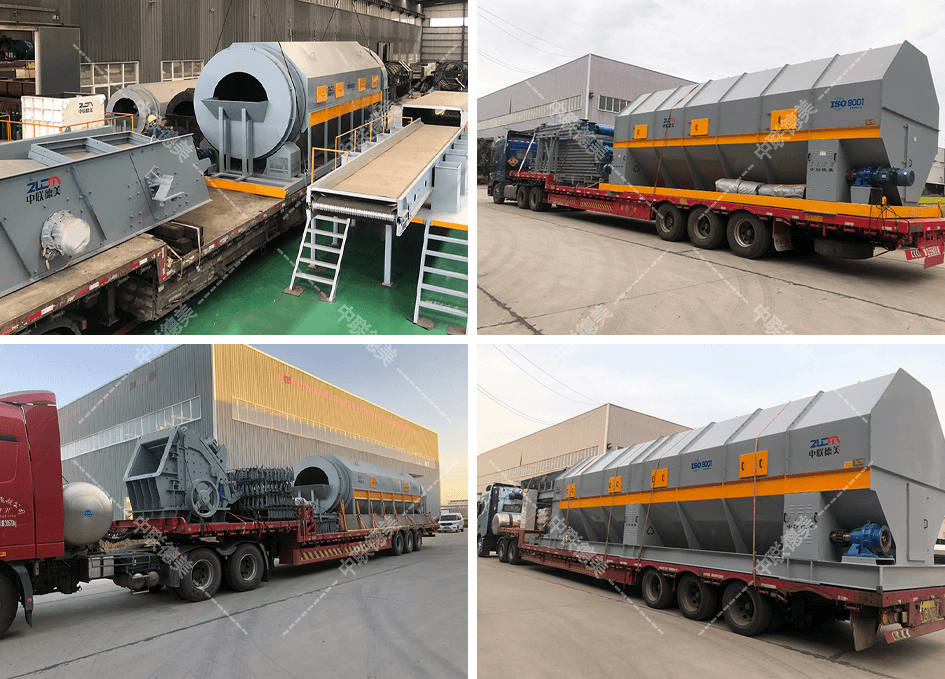

【Shipping Photos】:
