bar screen

Overview

【Product Overview】:

The bar screen is a vibrating screening device designed for pre-screening complex materials such as municipal solid waste, construction waste, industrial solid waste, and aged waste. Located at the front end of a waste treatment production line, it effectively separates fine materials, soil, and debris, helping to reduce the load on subsequent crushing and sorting equipment and improving overall line efficiency and resource recovery capabilities.

【Production Capacity】:

30–600 t/h (dynamically adjusted according to waste type, moisture content, bar spacing, and equipment configuration)

【Applicable Materials】:

Mixed municipal solid waste, construction waste, demolition waste, industrial solid waste, compost pretreatment materials, aged landfill waste, and other mixed solid waste containing impurities, moisture, and high viscosity.

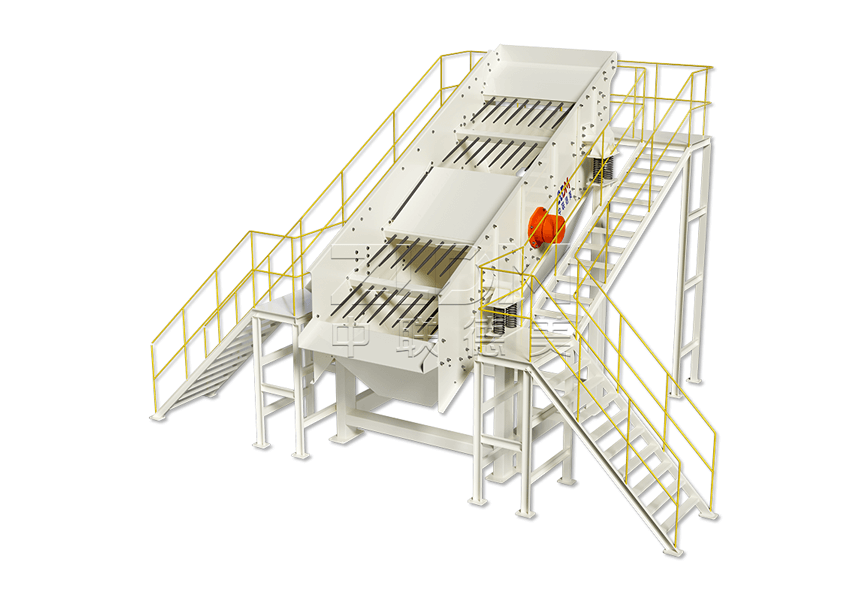

【Product Image】:

【Product Aliases】:

Garbage Bar Screen, Solid Waste Pre-screening Machine, Bar Vibrating Feeder Screen, Heavy-duty Garbage Screening Machine, Coarse Material Separating Bar Screen

【Product Introduction】:

This equipment features a structure optimized for the characteristics of garbage materials. It utilizes thickened wear-resistant alloy bars and a high-strength box structure, providing excellent impact resistance and corrosion resistance. The screen inclination angle and amplitude can be adjusted as needed to adapt to garbage materials with different moisture levels and viscosities. It can be used in conjunction with downstream equipment such as crushers, magnetic separators, and air separators to form a garbage resource recovery production line.

【Working Principle】:

The equipment generates directional vibration through a dual-shaft vibrator or vibrating motor, causing the screen box to move along a set trajectory (linear or elliptical). Mixed garbage is evenly distributed from the feed inlet. During the vibrating conveying process, fine materials smaller than the gaps between the bars (such as slag, debris, and fine organic materials) are screened through the gaps, while larger materials (such as wood blocks, stones, and plastic clumps) are conveyed forward to the discharge end, achieving the separation of coarse and fine materials.

【Product Advantages】:

1. Suitable for Waste Processing: The structural design incorporates corrosion resistance, anti-winding, and anti-clogging features, making it suitable for materials containing impurities, moisture, and stickiness.

2. Contributes to Energy Saving and Load Reduction: Pre-screening removes some fine materials, reducing the operating load and wear on the crushing equipment.

3. Self-Cleaning Function: High-frequency vibration with bar spacing reduces material adhesion and clogging.

4. Adjustable Parameters: Bar spacing, screen angle, and vibration frequency can be adjusted according to material conditions.

5. Good Wear Resistance: Key components use wear-resistant materials or surface treatment processes, extending service life.

6. Convenient Maintenance: The modular design of the screen bars makes replacement easy, reducing downtime.

7. Environmentally Friendly: Optional enclosed structure and dust collection interface keep operating noise within a reasonable range, meeting environmental protection production line requirements.

8. Good System Compatibility: Can be linked with various waste treatment equipment and supports integration into automated production lines.

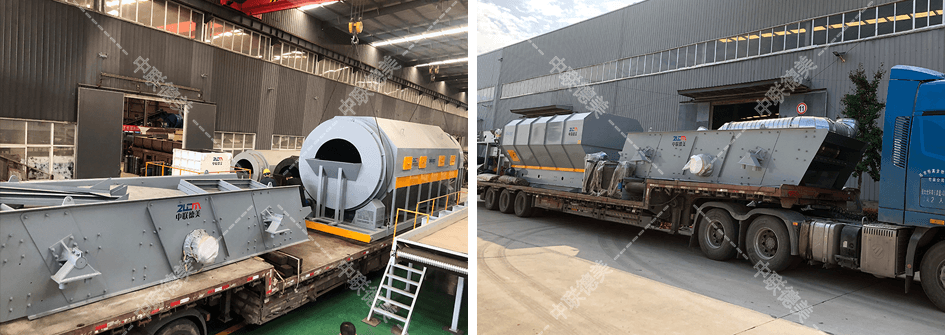

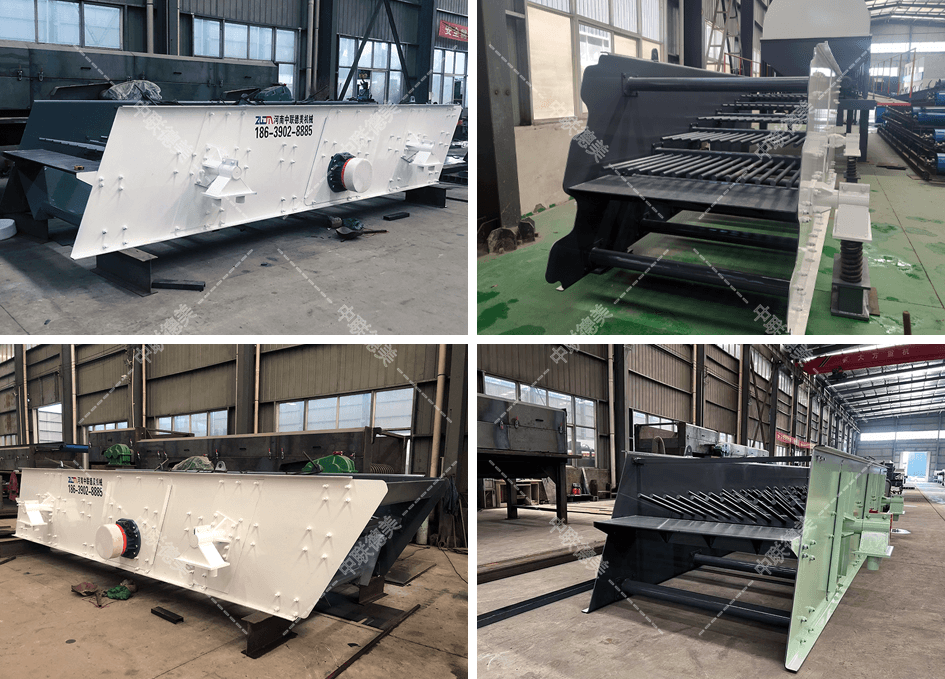

【Shipping Photos】:
