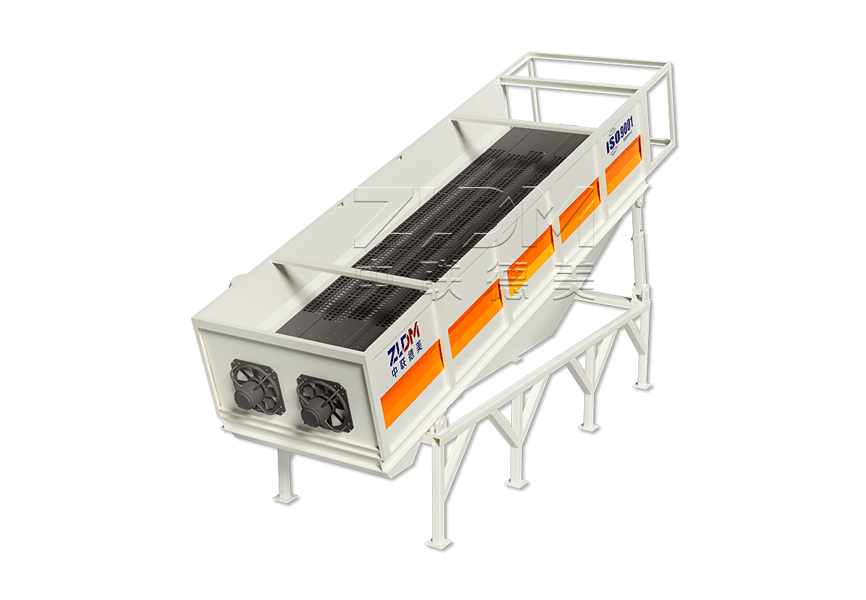

Bouncing screen

Overview

【Product Overview】：

The bouncing screen classifies waste based on its different characteristics, separating plastic waste from cardboard, waste paper, and film. It is also suitable for separating lightweight materials, such as film, from cylindrical trash bottles and cans. Depending on the speed of movement, 3D-shaped waste is bounced under the screen, while 2D-shaped waste such as film and paper is bounced onto the screen, thus achieving waste sorting.

【Production Capacity】： 5-30 m³/h

【Feed Size】： 3D materials, 2D materials, fine materials

Applicable Materials】：Household waste, construction waste, aged waste, recycled metal waste, etc.

Alternative Names】： Bouncing screen, 3D sorter, waste sorting bouncing screen

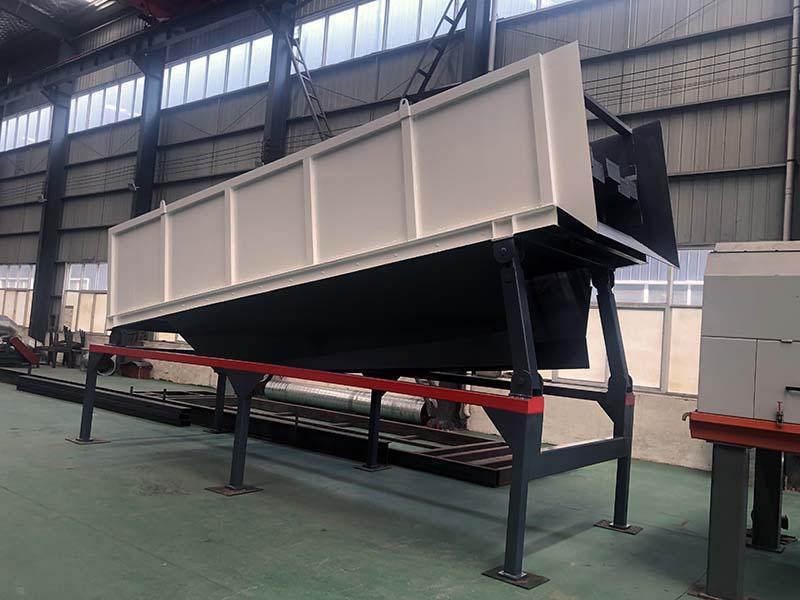

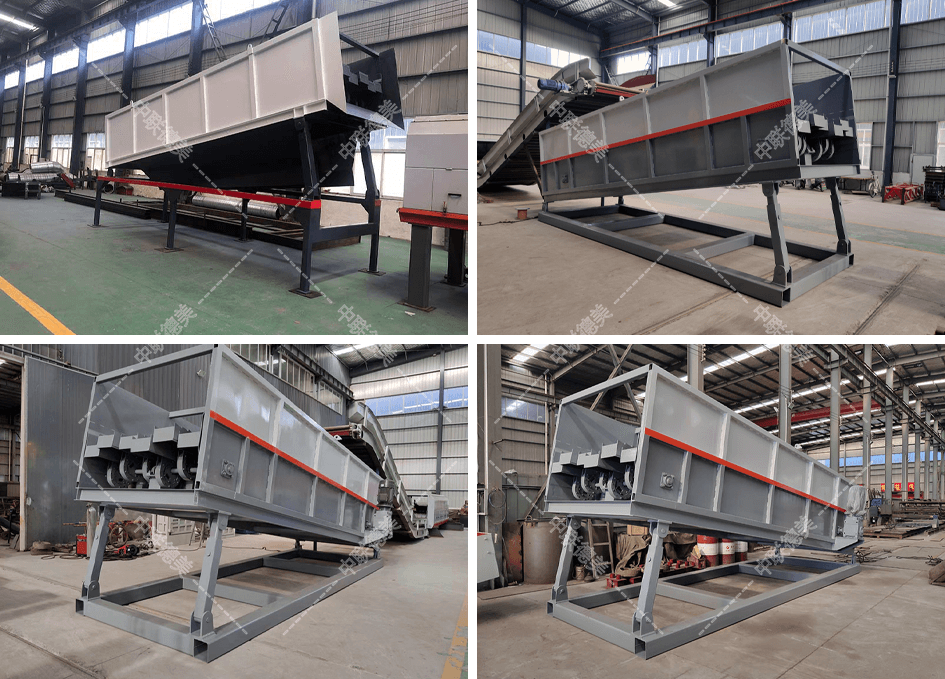

【Product Images】：

【Product Introduction】：

The bouncing sorting screen is a device that sorts materials based on their shape and specific gravity. It is an ideal sorting screen for processing household waste, pressed kitchen waste, paper recycling, and other industries. The bouncing sorting screen uses an eccentric shaft to drive the screen plate up and down and back and forth, causing the material being screened on the screen to be shaken and broken into heavy, rolling 3D material portions (such as plastic bottles, wood, cans, etc.), light, flat 2D material portions (film, paper, cardboard), and undersize material portions (sand, food scraps), facilitating subsequent processing.

The waste bouncing sorting machine is a shut-off device with a separation function designed for separating inorganic particles from waste after coarse crushing. This machine utilizes the characteristics of the crushed waste material, separating it according to its specific gravity when the waste reaches a certain particle size. The waste bouncing sorting machine is designed with a bouncing function, which separates inorganic particles or other hard particles while conveying the material. The separated particles move in the opposite direction to the conveyed material, thus achieving the purpose of sorting.

【Key Advantages】：

The main features of the bouncing screen separator include: The screen is made of stainless steel, featuring an advanced and durable structure; it uses large-clearance bearings with thin oil lubrication, resulting in low noise, long service life, and highly interchangeable parts for easy maintenance; the installation angle of the bouncing screen separator can be adjusted according to the material conditions, and its speed can be variable frequency to suit different materials.

【Working Principle】：

The bouncing screen separator is a device that sorts materials based on the size, density, and shape of different components. It is ideal for processing and sorting household waste, old waste, construction waste, and decorative waste. The bouncing screen separator uses an eccentric shaft to drive the screen plate to move back and forth and up and down, separating 3D materials (such as plastic bottles, wood, bricks, etc.), lightweight and flat 2D materials (films, paper, and cardboard), and fine materials (sand and food residue) from the screen, facilitating subsequent processing.

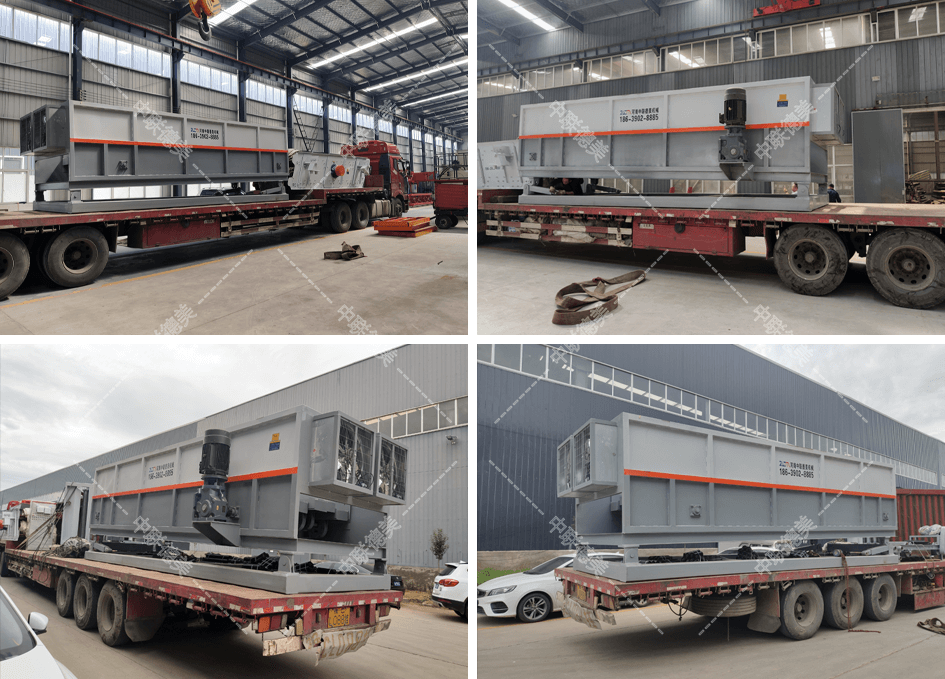

【Shipping Photos】：

Technical Parameters
