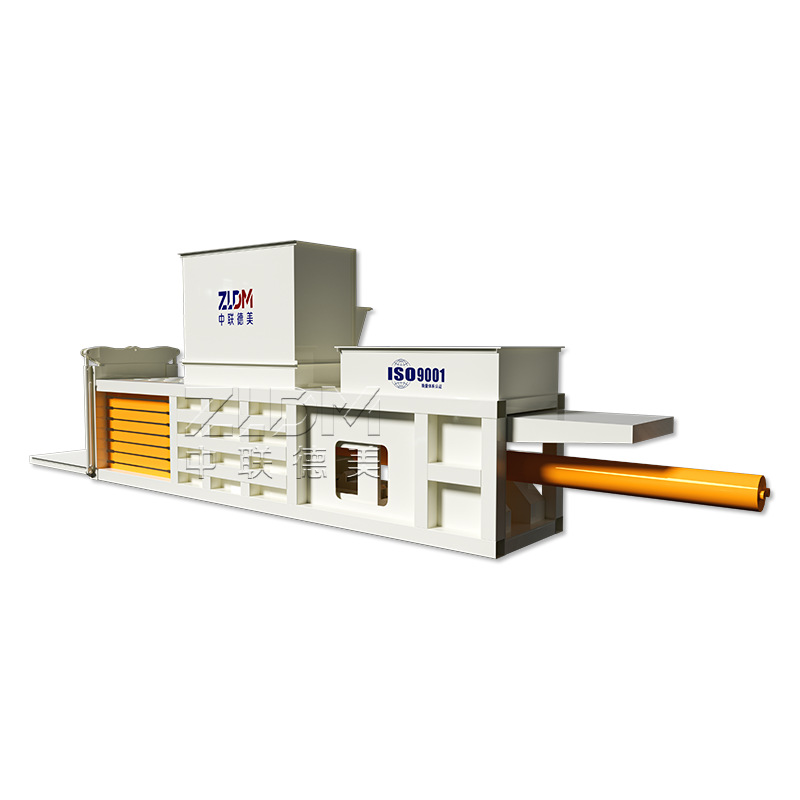

Hydraulic Baling Press

Overview

【Product Overview】:

A hydraulic baler is a device that uses a hydraulic system to compress loose materials into bales. It is suitable for use in waste treatment and resource recycling production lines to reduce the volume of compressible materials such as waste paper, plastics, lightweight metals, and fibers, facilitating transportation, storage, and subsequent recycling.

【Production Capacity】:

3–20 bales/hour (adjustable depending on material type, compression density, bale size, and equipment model)

【Applicable Materials】:

Waste cardboard boxes, waste plastic bottles/films, waste textiles, lightweight metal scraps, recyclable household waste, straw fibers, and other loose, lightweight, compressible solid waste materials.

【Alternative Names】:

Waste baler, compression baler, hydraulic briquetting machine, solid waste baler, strapping machine

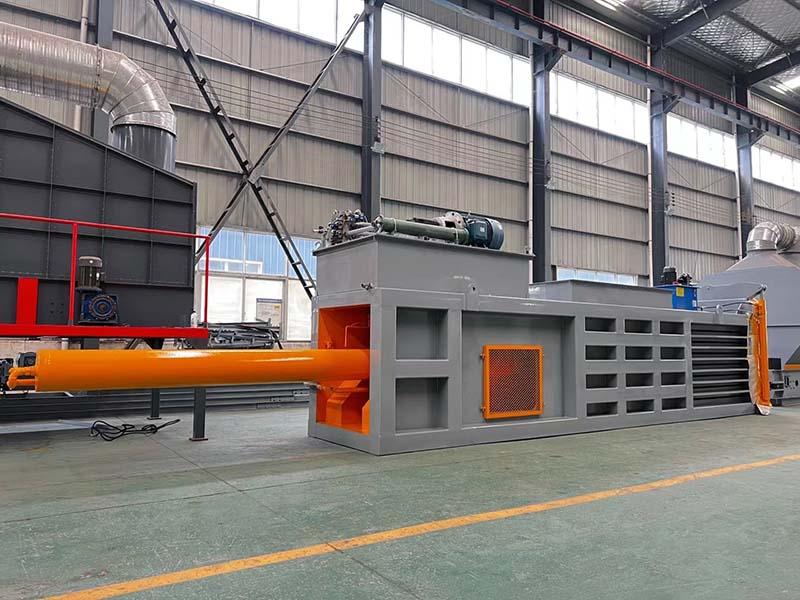

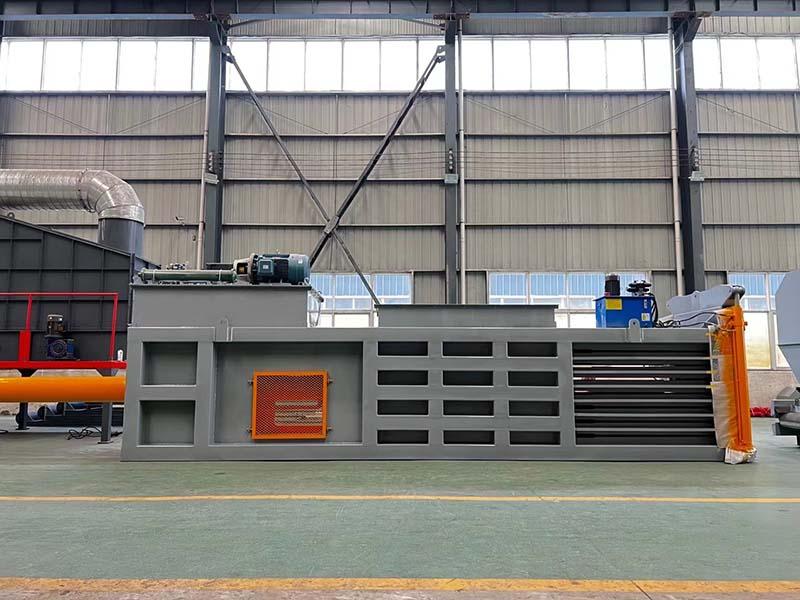

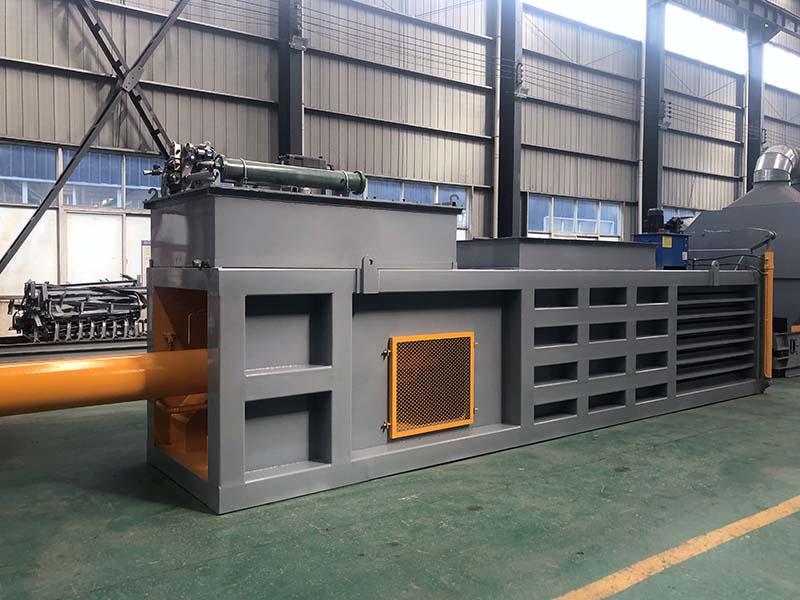

【Product Images】:

【Product Introduction】:

This equipment uses a hydraulic power system to drive the pressure head to compress the material in multiple directions. After forming, the bales are secured by strapping or wrapping. The equipment boasts a robust structure, high compression force, and uniform bale density. It can be configured with automatic or semi-automatic operation modes as needed, making it suitable for use at the end of sorting lines or recycling stations.

【Working Principle】:

After loose material is fed into the compression chamber, a hydraulic cylinder drives the main pressure head downwards, forcefully compressing the material into bales. Once compression is complete, the side or front door opens, ejecting the formed bales, which are then manually or automatically bundled and secured, completing one work cycle.

【Product Advantages】:

1. High Compression Density: Effectively reduces material volume, improving transportation and storage efficiency;

2. Wide Applicability: Supports various lightweight compressible solid wastes, such as paper, plastics, and textiles;

3. Flexible Operation: Offers manual, semi-automatic, or fully automatic control modes to suit different site requirements;

4. Stable Hydraulic System: Employs a mature hydraulic circuit design, ensuring stable pressure output and a low failure rate;

5. Comprehensive Safety Protection: Equipped with door interlock, overload protection, and emergency stop safety devices;

6. Relatively Simple Maintenance: Key hydraulic components are rationally arranged, facilitating daily maintenance and repair;

7. Cost Savings: Compressed bales are neatly arranged, reducing transportation frequency and lowering logistics and management costs.

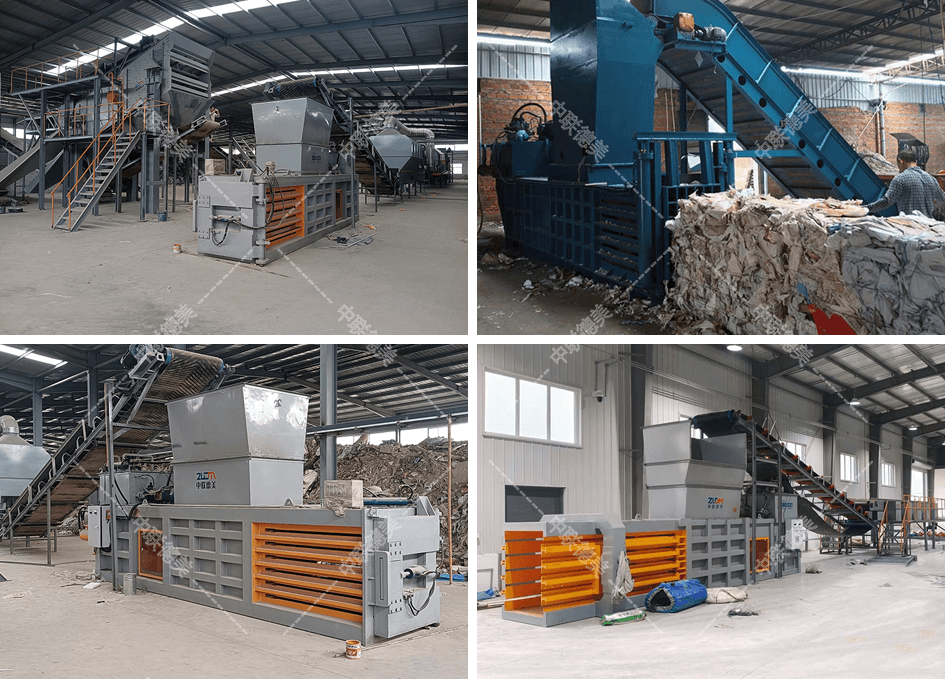

【Usage Site】:

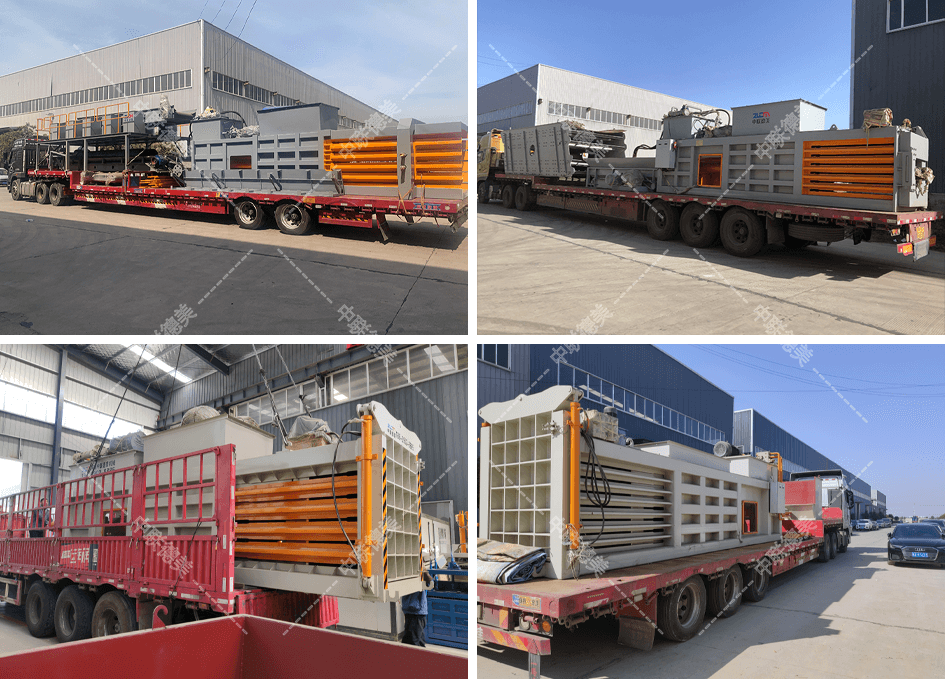

【Shipping Photos】:

Technical Parameters
